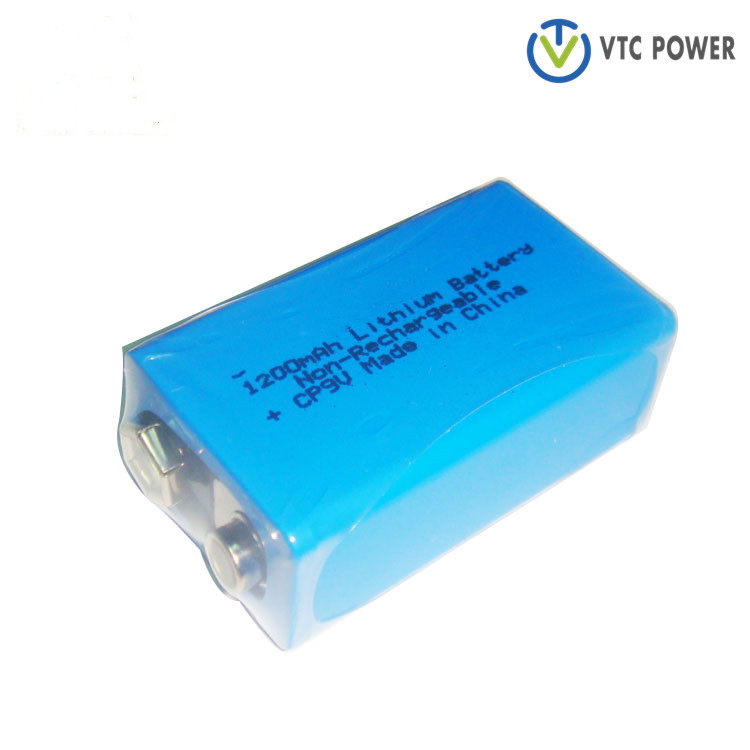

CP9V Lithium Battery 9v 1200mah For Energy Meter, Multimeter, Water Meter, Gas Meter
  • Air ProCP9V Lithium Battery 9v 1200mah For Energy Meter, Multimeter, Water Meter, Gas Meter
  • Air ProCP9V Lithium Battery 9v 1200mah For Energy Meter, Multimeter, Water Meter, Gas Meter

CP9V Lithium Battery 9v 1200mah For Energy Meter, Multimeter, Water Meter, Gas Meter

Model No: CP9V
IEC Size: 9V
Voltage(V): 9.0V
Weight(g): 29g
Current(mAh\mA): 1200mAh
Max constant current(mA): 300mA
Operate Temp.(℃): -40-60℃
End voltage(V): 5.4V

Send Inquiry

Product Description

CP9V Lithium battery 9V 1200mAh for energy meter,multimeter,water meter,gas meter

Product Description:
Model No:CP9V

IEC Size: 9V

Voltage(V):9.0V

Weight(g):29g

Current(mAh\mA): 1200mAh

Max constant current(mA):300mA

Operate Temp.(℃):-40-60‘C’

End voltage(V):5.4V

Application:

1,  Utility metering; 2,  Alarm and security devices; 3,  Memory back-up power; 4,  Professional electronics; 5,  Automotive electronics; 6,  Real-time clock; 7,   Tracking system. 8. energy meter 9.multimeter 10.water meter 11.gas meter



Discharge Curve:


Key feature:

1, High and stable operating voltage;

2, Long shelf life(Self-discharge rate less than 1% at 25℃);

3, Long operating life;

4, Wide temperature range;

5, Stainless steel container and end caps;

6, Hermetic glass-to-metal sealing;

7, Non-flammable electrolyte;

8, Compliant with IEC86-4 safety standard;

9, Non-restricted for transport;

10, High energy density(700kw/kg).



Specification:

1,  Size:CP9V;

2,  Dimension:  Φ49.5mm*27.3mm*18.0mm;

3,  Weight: 29g;

4,  Capacity: 1200mAh;

 (at 1mA,+25℃,2.0V cut  off)

5,  Open circuit voltage: 9V

6,  Max continuous current:300mA

(at 25℃2.0V cut  off, up to 50% of nominal capacity)

7,  Max pulse current: 500mA;

(100mA/0.1s pulse, drained every 2 minutes at 25℃from 1mA mid-charged cells with 20μA base current, yield voltage readings above 2.7V, the readings may vary according to the pulse characteristics, the temperature, and the cells’s previous history.)

8,  Operating temperature: -40℃~ +60℃;



Product Package:



Shipment:


Certification:


Packing & Shipping:

Company Profile:
VTC Power Co.,Ltd an OEM rechargeable battery manufacturer in China over 20 years. Specializing in NiMh,Nicd,Lithium polymer battery, LiFePO4 battery,LiSoci2 battery and Li-ion Battery. Our batteries got UL, IEC62133, UN38.3,CB, CE, ROHS certifications, some models also passed by KC, BIS.


Exhibition:


FAQ:
Q1. Can I have a sample order for Battery?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A:Sample needs 5-10 days, mass production time needs 25-30 days.

Q3. Do you have any MOQ limit for Battery?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by UPS, TNT... It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Battery?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

Q6. Is it OK to print my logo on Battery?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new batteries with new order for small quantity. For defective
batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
