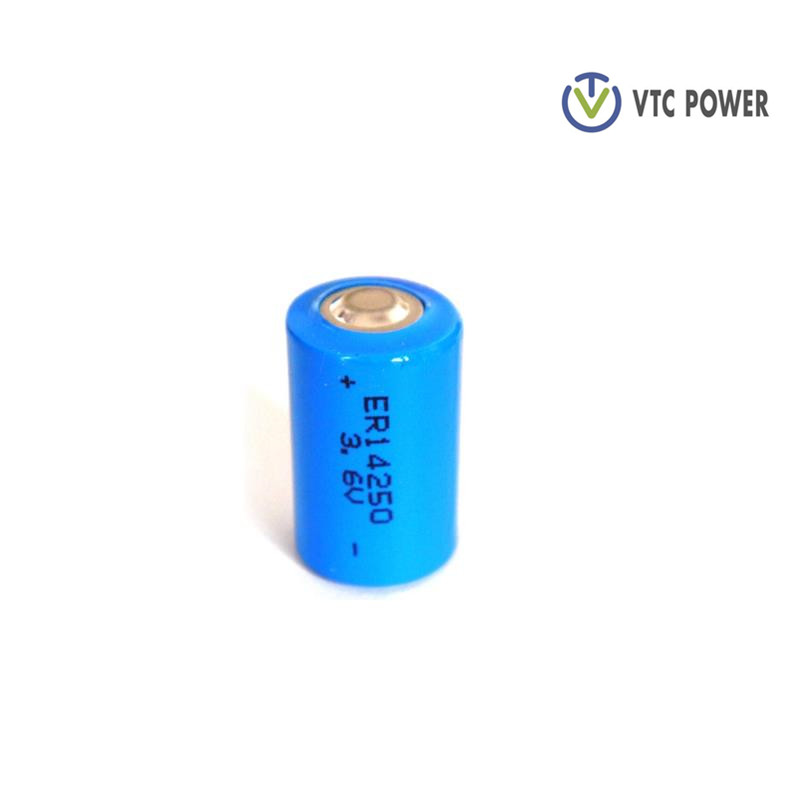

3.6v Lithium Battery Er14250 Specification:
Model: VTC-ER14250
Nominal voltage: 3.6V
Nominal capacity: 1200MAh
Battery Weight: 11G
Measurement（Φ*H）: 14.5*25.2mm
| Model: | VTC-ER14250 |
| Nominal voltage: | 3.6V |
| Nominal capacity: | 1200MAh |
| Battery Weight: | 11G |
| Measurement（Φ*H）: | 14.5*25.2mm |
1. Excellent shelf life (10 years at room temperature);
2. Low self-discharge (1% or less per year);
3. Suited for long-term use with low current;
4. Best suit for low current discharge;
5. Wide temperature range from -55℃ to +85℃;
6. Bobbin-type or flat cells.
Li-SOCl2 battery can provide long lift in nominal temperature and be operated over a wide rang of temperature.
Li-SOCl2 battery widely used for Real-time, Clock, Apparatus and instrument, CMOS memory backup power source, LED light
| Model | Size | Nominal Voltage | Nominal Capacity | Standard Discharge Current | Max Discharge Current | Cut-off Voltage | Weight(g) | Measurement(Φ*Hmm) |
| VTC-ER14250H | 1/2AA | 3.6 | 1200 | 1 | 20 | 2 | 10 | Φ14.5*25.4 |
| VTC-ER14335 | 2/3AA | 3.6 | 1650 | 1 | 40 | 2 | 13 | Φ14.5*33.5 |
| VTC-ER14505H | AA | 3.6 | 2600 | 1 | 50 | 2 | 18 | Φ14.5*50.5 |
| VTC-ER17505H | A | 3.6 | 3600 | 2 | 70 | 2 | 24 | Φ17.0*50.5 |
| VTC-ER18505H | -- | 3.6 | 4000 | 2 | 70 | 2 | 30 | Φ18.5*50.5 |
| VTC-ER26500H | C | 3.6 | 8500 | 2 | 100 | 2 | 53 | Φ26.2*50.0 |
| VTC-ER261020H | CC | 3.6 | 16000 | 2 | 150 | 2 | 101 | Φ26.2*102.0 |
| VTC-ER34615H | D | 3.6 | 19000 | 5 | 150 | 2 | 103 | Φ33.6*60.0 |
| VTC-ER341245H | DD | 3.6 | 36000 | 10 | 300 | 2 | 200 | Φ34.2*124.5 |
| VTC-ER14335M | 2/3AA | 3.6 | 1350 | 1 | 150 | 2 | 13 | Φ14.5*33.5 |
| VTC-ER14505M | AA | 3.6 | 2100 | 1 | 400 | 2 | 19 | Φ14.5*50.5 |
| VTC-ER17335M | 2/3AA | 3.6 | 1700 | 3 | 200 | 2 | 19 | Φ17.0*33.5 |
| VTC-ER17505M | A | 3.6 | 2800 | 3 | 1000 | 2 | 26 | Φ17.0*50.5 |
| VTC-ER18505M | -- | 3.6 | 3500 | 5 | 1000 | 2 | 30 | Φ18.5*50.5 |
| VTC-ER26500M | C | 3.6 | 6000 | 10 | 1500 | 2 | 57 | Φ26.2*50.0 |
| VTC-ER34615M | D | 3.6 | 13000 | 15 | 1800 | 2 | 109 | Φ34.2*61.5 |
Q1. Can I have a sample order for Battery?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 5-10 days, mass production time needs 25-30 days.
Q3. Do you have any MOQ limit for Battery?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by UPS, TNT... It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Battery?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on Battery?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new batteries with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
