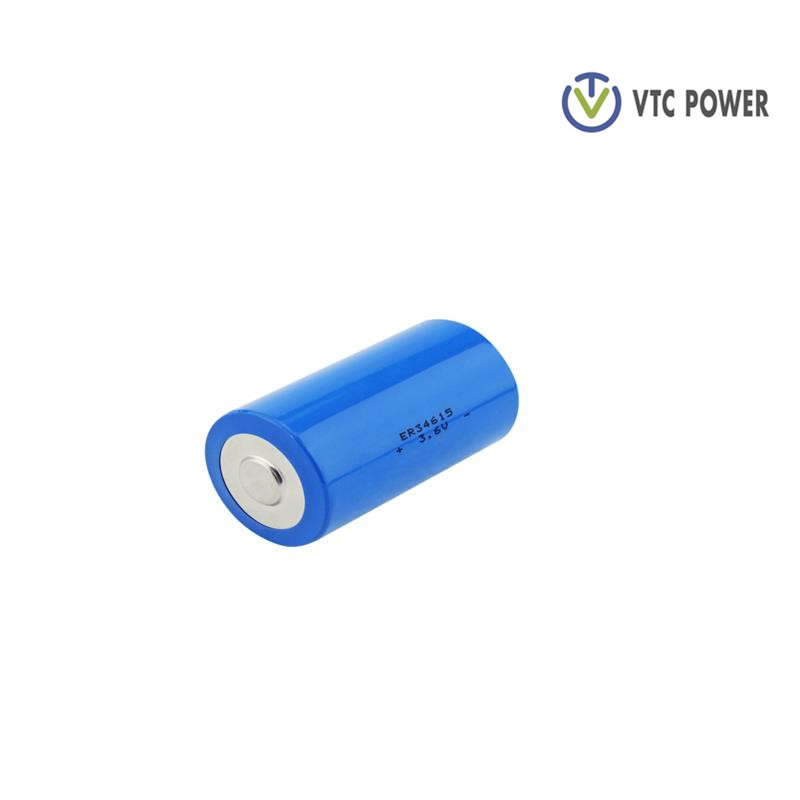

Er34615m Battery
  • Air ProEr34615m Battery

Er34615m Battery

Er34615m Battery Specification:
Model: VTC-ER34615
Nominal voltage: 3.6V
Nominal capacity: 19000MAh
Battery Weight: 115G
Measurement(Φ*H): 34*61.5mm

Send Inquiry

Product Description

Er34615m Battery Application:

Solar-Wind Power System, City Grid, Community and Family, RV Motorhome, Golf Carts Battery, Boat Marine Yachts, Electric Skateboard, Vehecle

Telcom Base, CATV system, Computer Server Center, Medical Instrument, Military Equipment

Security and Electronics, Mobile POS, Mining Light, Torch, LED Light, Emergency Light, LED Backup, Engine Starling Battery, etc


Er34615m Battery Description:

Li-SOCl2 battery can provide long lift in nominal temperature and be operated over a wide rang of temperature.


Er34615m Battery Key Features:

• High operating voltage, stable during most of the application lifetime
•Applicable in a wide range of temperatures (-55°C to +85°C)
• Superior shelf life and reliability: Over 10 years of shelf life if stored at room temperature
• Energy type consists of a bobbin structure that is best suited for a low discharge current. It may require activation before the medium currents can be delivered
• Self-discharge rate of less than 1% per year


Er34615m Battery with related models:

Model Size Nominal Voltage Nominal Capacity Standard Discharge Current Max Discharge Current Cut-off Voltage Weight(g) Measurement(Φ*Hmm)
VTC-ER14250H 1/2AA 3.6 1200 1 20 2 10 Φ14.5*25.4
VTC-ER14335 2/3AA 3.6 1650 1 40 2 13 Φ14.5*33.5
VTC-ER14505H AA 3.6 2600 1 50 2 18 Φ14.5*50.5
VTC-ER17505H A 3.6 3600 2 70 2 24 Φ17.0*50.5
VTC-ER18505H -- 3.6 4000 2 70 2 30 Φ18.5*50.5
VTC-ER26500H C 3.6 8500 2 100 2 53 Φ26.2*50.0
VTC-ER261020H CC 3.6 16000 2 150 2 101 Φ26.2*102.0
VTC-ER34615H D 3.6 19000 5 150 2 103 Φ33.6*60.0
VTC-ER341245H DD 3.6 36000 10 300 2 200 Φ34.2*124.5
VTC-ER14335M 2/3AA 3.6 1350 1 150 2 13 Φ14.5*33.5
VTC-ER14505M AA 3.6 2100 1 400 2 19 Φ14.5*50.5
VTC-ER17335M 2/3AA 3.6 1700 3 200 2 19 Φ17.0*33.5
VTC-ER17505M A 3.6 2800 3 1000 2 26 Φ17.0*50.5
VTC-ER18505M -- 3.6 3500 5 1000 2 30 Φ18.5*50.5
VTC-ER26500M C 3.6 6000 10 1500 2 57 Φ26.2*50.0
VTC-ER34615M D 3.6 13000 15 1800 2 109 Φ34.2*61.5


Certification:


Packing&Shipping:

Company Profile:
VTC Power Co.,Ltd an OEM rechargeable battery manufacturer in China over 20 years. Specializing in NiMh,Nicd,Lithium polymer battery, LiFePO4 battery,LiSoci2 battery and Li-ion Battery. Our batteries got UL, IEC62133, UN38.3,CB, CE, ROHS certifications, some models also passed by KC, BIS.
