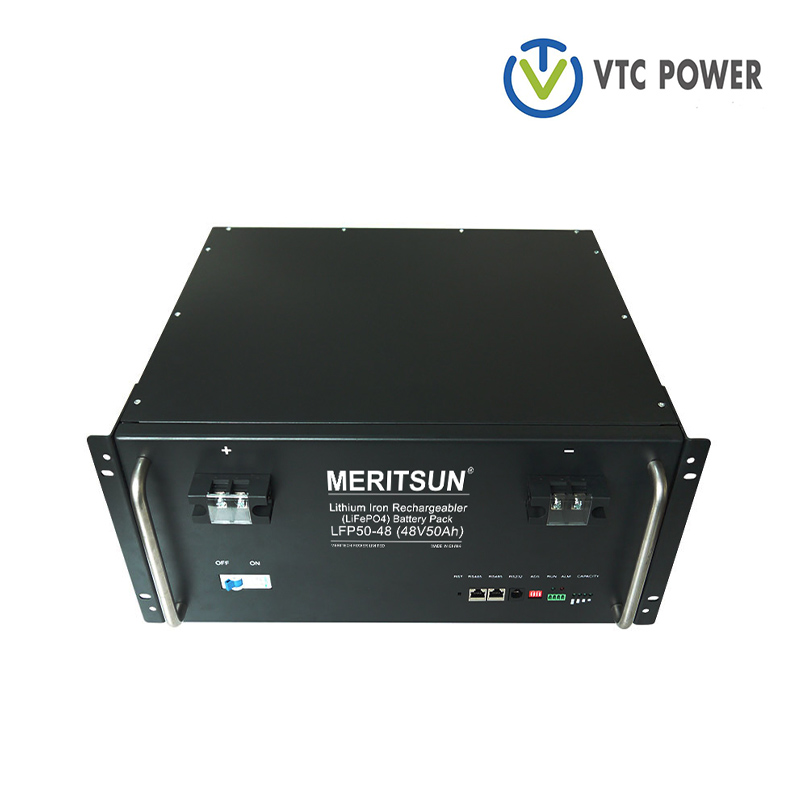

Model: VTC-16LF50
Nominal voltage: 48V
Nominal capacity: 50Ah
Internal Resistance: ≤60mΩ
Life Cycles: ≥3000
Maximum Charge Voltage:58.4V
Cut-off Discharge Voltage: 36.9V
Continuous Discharge Current: 80A
Battery Weight: 21Kg
Measurement: 133*410*452mm
| Model: | VTC-16LF50 |
| Nominal voltage: | 48V |
| Nominal capacity: | 50Ah |
| Internal Resistance: | ≤60mΩ |
| Life Cycles: | ≥3000 |
| Maximum Charge Voltage: | 58.4V |
| Cut-off Discharge Voltage: | 36.9V |
| Continuous Discharge Current: | 80A |
| Battery Weight: | 21Kg |
| Measurement: | 133*410*452mm |
LiFePO4 widely used in electric sprayer, solar power general, energy storage devices, telecom base station, solar street light, UPS, ESS and so on.
The lithium iron phosphate battery is a type of rechargeable battery based on the original lithium ion chemistry, created by the use of Iron (Fe) as a cathode material. LiFePO4 cells have a higher discharge current, do not explode under extreme conditions and weigh less but have lower voltage and energy density than normal Li-ion cells.
1）Long cycle life: More than 2000 times (charging and discharging at 1C,remain capacity more than 80%)
2）Safety: No fire and explosion in overcharge test at voltage up to 30V in short-circuit test, Acupuncture test and heat shock up to 130℃
3）High discharging rate to 30C
4）Excellent high temperature performance: operate in 85℃ could working well, have more wide operate temperature range than other battery.
