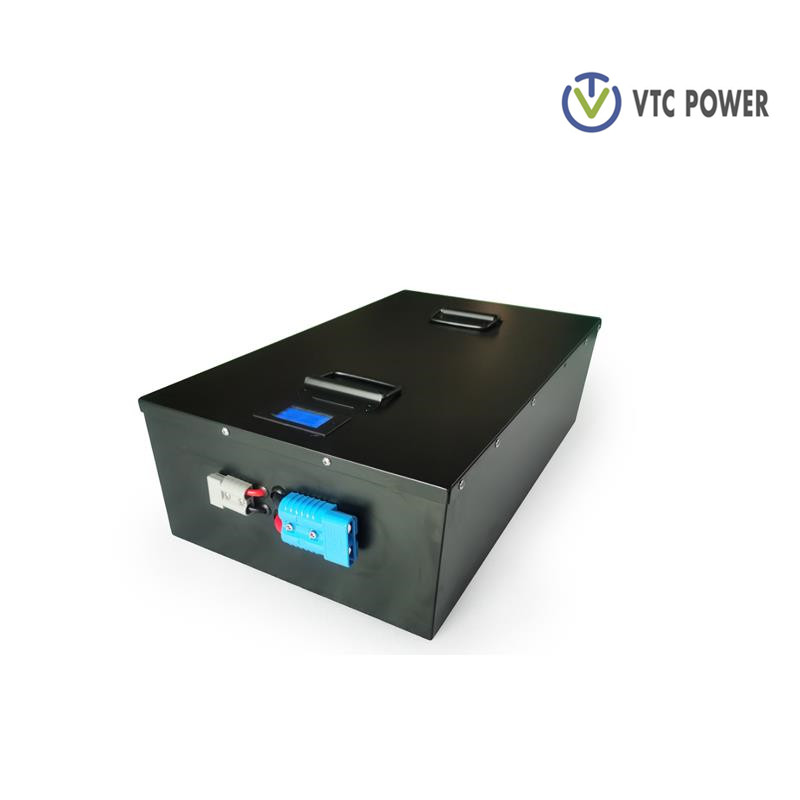

72v 50ah Lifepo4 Battery Pack Specification:
Model: VTC-24LF50
Nominal voltage: 72V
Nominal capacity: 50Ah
Internal Resistance: ≤0.5mΩ
Life Cycles: ≥3000
Maximum Charge Current:100A(1C rate)
Cut-off Discharge Voltage:2.5V
Continuous Discharge Current: 80A
Battery Weight: 35Kg
Measurement: 530*170*240mm
Model: | VTC-24LF50 |
Nominal voltage: | 72V |
Nominal capacity: | 50Ah |
Internal Resistance: | ≤0.5mΩ |
Life Cycles: | ≥3000 |
Maximum Charge Current: | 100A(1C rate) |
Cut-off Discharge Voltage: | 2.5V |
Continuous Discharge Current: | 80A |
Battery Weight: | 35Kg |
Measurement: | 530*170*240mm |
1)Long cycle life: More than 2000
times (charging and discharging at 1C,remain capacity more than 80%)
2)Safety:
No fire and explosion in overcharge test at voltage up to 30V in short-circuit
test, Acupuncture test and heat shock up to 130℃
3)High
discharging rate to 30C
4)Excellent
high temperature performance: operate in 85℃ could working well, have more
wide operate temperature range than other battery.
The lithium iron phosphate battery is a type of rechargeable battery based on the original lithium ion chemistry, created by the use of Iron (Fe) as a cathode material. LiFePO4 cells have a higher discharge current, do not explode under extreme conditions and weigh less but have lower voltage and energy density than normal Li-ion cells.
LiFePO4 battery widely used in electric sprayer, solar power general, energy storage devices, telecom base station, solar street light, UPS, ESS and so on.
Model | Battery Material | Nominal Voltage(V) | Nominal Capacity | Internal Resistance | Life Cycles | Cut-off Discharge Voltage | Maximum Charge Voltage | Battery weight(Approx) | Measurement(Φ*H) |
VTC-LF14500C | LiFePo4 | 3.2V | 400mAh | ≦50 | ≥3000 | 2.3V | 3.65V | 18.5g | 14*50mm |
VTC-LF18500C | LiFePo4 | 3.2V | 1100mAh | ≦40 | ≥3000 | 2.3V | 3.65V | 32g | 18*50mm |
VTC-LF18650C | LiFePo4 | 3.2V | 1500mAh | ≦40 | ≥3000 | 2.3V | 3.65V | 45g | 18*65mm |
VTC-LF22650C | LiFePo4 | 3.2V | 2300mAh | ≦20 | ≥3000 | 2.3V | 3.65V | 60g | 22*65mm |
VTC-22650C | LiFePo4 | 3.2V | 3300mAh | ≦40 | ≥3000 | 2.3V | 3.65V | 80g | 26*65mm |
VTC-LF22650C | LiFePo4 | 3.2V | 3600mAh | ≦40 | ≥3000 | 2.3V | 3.65V | 83g | 26*65mm |
VTC-LF32650C | LiFePo4 | 3.2V | 6000mAh | ≦10 | ≥3000 | 2.3V | 3.65V | 195g | 32*65mm |
VTC-LF32700C | LiFePo4 | 3.2V | 6500mAh | ≦10 | ≥3000 | 2.3V | 3.65V | 198g | 32*70mm |
VTC-LF25 | LiFePo4 | 3.2V | 25Ah | ≦3 | ≥3000 | 2.3V | 3.65V | 690g | 22*100*140mm |
VTC-LF80A | LiFePo4 | 3.2V | 80Ah | ≦1 | ≥3000 | 2.3V | 3.65V | 2.3kg | 48*173*132mm |
VTC-LF80B | LiFePo4 | 3.2V | 80Ah | ≦1 | ≥3000 | 2.3V | 3.65V | 1.8kg | 27*135*206mm |
VTC-LF100A | LiFePo4 | 3.2V | 100Ah | ≦1 | ≥3000 | 2.3V | 3.65V | 2.3kg | 48*173*132mm |
VTC-LF100B | LiFePo4 | 3.2V | 100Ah | ≦1 | ≥3000 | 2.3V | 3.65V | 2.08kg | 34*135*216mm |
VTC-LF120 | LiFePo4 | 3.2V | 120Ah | ≦1 | ≥3000 | 2.3V | 3.65V | 2.84kg | 48*170*173mm |
VTC-LF202 | LiFePo4 | 3.2V | 202Ah | ≦1 | ≥3000 | 2.3V | 3.65V | 4.12kg | 54*174*208mm |
VTC-LF280 | LiFePo4 | 3.2V | 280Ah | ≦1 | ≥3000 | 2.3V | 3.65V | 5.5kg | 72*175*205mm |
Model | Nominal Voltage(V) | Nominal Capacity(Ah) | Internal Resistance(mΩ) | Life Cycles | Maximum Charge Voltage | Cut-off Discharge Voltage | Continous Discharge Voltage | Battery weight(Approx) | Measurement(T*W*L) |
VTC-4F10 | 12V | 10 | ≦60 | ≥3000 | 14.6V | 9.2V | 20A | 1.5Kg |
151*98*95mm 33*70*290mm |
VTC-4F20 | 12V | 20 | ≦30 | ≥3000 | 14.6V | 9.2V | 40A | 2.8Kg | 181*76*166mm |
VTC-4F30 | 12V | 30 | ≦30 | ≥3000 | 14.6V | 9.2V | 60A | 3.8Kg | 182*130*195mm |
VTC-4F30 | 12V | 40 | ≦10 | ≥3000 | 14.6V | 9.2V | 80A | 5.7Kg | 182*130*195mm |
VTC-4F50 | 12V | 50 | ≦8 | ≥3000 | 14.6V | 9.2V | 75A | 6.0Kg | 182*130*195mm |
VTC-4F100A | 12V | 100 | ≦5 | ≥3000 | 14.6V | 9.2V | 80A | 13.5Kg | 260*158*246mm |
VTC-4F100B | 12V | 100 | ≦5 | ≥3000 | 14.6V | 9.2V | 100A | 13.5Kg | 305*173*225mm |
VTC-4F150 | 12V | 150 | ≦4 | ≥3000 | 14.6V | 9.2V | 100A | 20.6Kg | 295*178*345mm |
VTC-4F200 | 12V | 200 | ≦4 | ≥3000 | 14.6V | 9.2V | 100A | 28.1Kg | 520*269*203mm |
VTC-8F40 | 24V | 40 | ≦20 | ≥3000 | 29.2V | 18.4V | 40A | 10Kg |
170*195*200mm 255*75*290mm |
VTC-8F60 | 24V | 60 | ≦15 | ≥3000 | 29.2V | 18.4V | 60A | 16Kg | 255*160*250mm |
VTC-8F100 | 24V | 100 | ≦12 | ≥3000 | 29.2V | 18.4V | 100A | 34Kg | 520*269*203mm |
VTC-16F20 | 48V | 20 | ≦120 | ≥3000 | 58.4V | 36.8V | 40A | 10Kg |
180*195*200mm 260*80*290mm |
VTC-16F30 | 48V | 40 | ≦60 | ≥3000 | 58.4V | 36.8V | 80A | 21Kg |
350*200*205mm 260*150*295mm |
VTC-16F50 | 48V | 50 | ≦60 | ≥3000 | 58.4V | 36.8V | 80A | 21Kg | 133*410*452mm |
VTC-16F100 | 48V | 100 | ≦60 | ≥3000 | 58.4V | 36.8V | 100A | 64Kg | 177*410*452mm |
Q1. Can I have a sample order for Battery?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 5-10 days, mass production time needs 25-30 days.
Q3. Do you have any MOQ limit for Battery?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by UPS, TNT... It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Battery?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on Battery?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new batteries with new order for small quantity. For defective
batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
