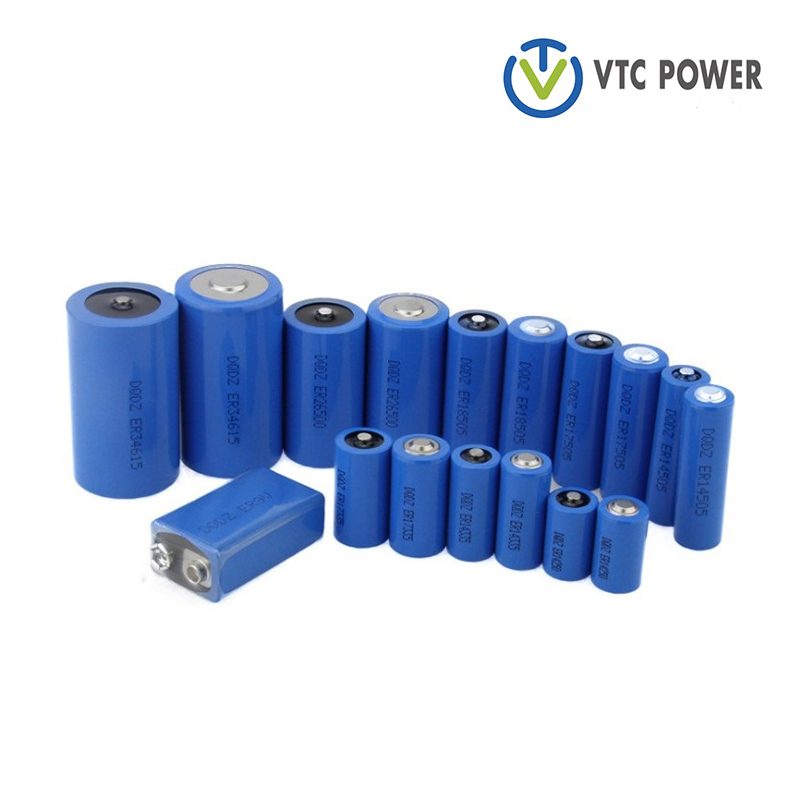

Lithium thionyl chloride battery (Li-SOCI2 battery) cathode is lithium metal (Li), the internal positive electrode active material and electrolyte are thionyl chloride (SOCl2)。 The rated voltage is 3.6V. 3.6V LiSoci2 battery are cylindrical and button shape, from 1/2AA to D format, with spiral type for high current and bobbin construction for small current. Lithium thiony chloride cells have a high energy density, partly because of their high nominal voltage of 3.6V. Bobbin type can reach 760Wh/kg, for a capacity of 19Ah at 3.6V in D format. Because self-discharge is extremely low, 3.6V LiSoci2 battery cell can support long storage periods and achieve a service life of 10 to 20 years.
Model: VTC-AAA-ER10450
Nominal Voltage:3.6V
End Voltage: 2V
Nominal capacity: 800mAh
Charge Current: 15mA
Battery Weight: 12G
Measurement（Φ*H）: 10.5*45.5mm

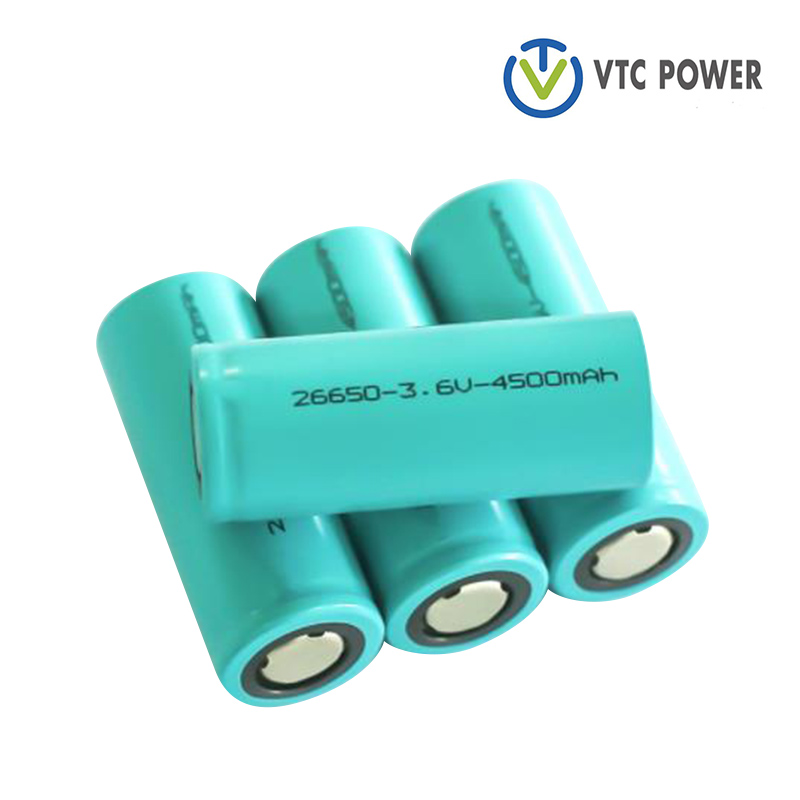

Model: VTC-ER26500 Nominal voltage: 3.6V Internal Resistance：≤30mΩ Nominal capacity: 4500MAh Battery Weight: 94G Measurement（Φ*H）: 26.2*50mm
Model: VTC-ER14505
Nominal voltage: 3.6V
Nominal capacity: 2400MAh
Battery Weight: 25G
Measurement（Φ*H）: 14*50.5mm
Model: VTC-ER34615
Nominal voltage: 3.6V
Nominal capacity: 19000mAh
Battery Weight: 108G
Measurement（Φ*H）: 34.2*61.5mm
ER9V 1200mAh Specification:
Model: VTC-ER9V
Nominal voltage: 3.6V
Nominal capacity: 1200MAh
Battery Weight: 40G
Measurement（Φ*H）: 16.9*26*48.8mm
3.6v Lithium Battery Er14250 Specification:
Model: VTC-ER14250
Nominal voltage: 3.6V
Nominal capacity: 1200MAh
Battery Weight: 11G
Measurement（Φ*H）: 14.5*25.2mm
