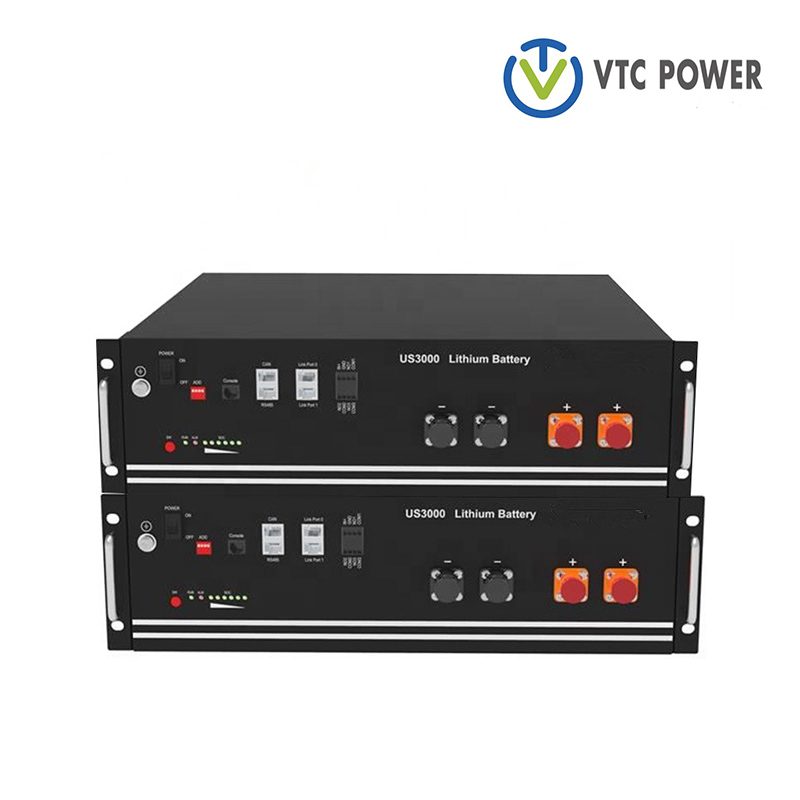

Lifepo4 Battery For Storage System
  • Air ProLifepo4 Battery For Storage System

Lifepo4 Battery For Storage System

Model: VTC-16LF200
Nominal voltage: 48V
Nominal capacity: 200Ah
Internal Resistance: ≤100mΩ
Life Cycles: ≥2000
Maximum Charge Voltage:58.4V
Cut-off Discharge Voltage: 36.9V
Continuous Discharge Current: 100A
Battery Weight: 87.5Kg
Measurement: 640*483*222mm

Send Inquiry

Product Description

lifepo4 battery for storage system

Specification:

Model: VTC-16LF200

Nominal voltage: 48V

Nominal capacity: 200Ah

Internal Resistance: ≤100mΩ

Life Cycles: ≥2000

Maximum Charge Voltage:58.4V

Cut-off Discharge Voltage: 36.9V

Continuous Discharge Current: 100A

Battery Weight: 87.5Kg

Measurement: 640*483*222mm


lifepo4 battery for storage system Application:

LiFePO4 widely used in electric sprayer, solar power general, energy storage devices, telecom base station, solar street light, UPS, ESS and so on.



lifepo4 battery for storage system Description:

The lithium iron phosphate battery is a type of rechargeable battery based on the original lithium ion chemistry, created by the use of Iron (Fe) as a cathode material. LiFePO4 cells have a higher discharge current, do not explode under extreme conditions and weigh less but have lower voltage and energy density than normal Li-ion cells.



lifepo4 battery for storage system Key Features:

 1)Long cycle life: More than 2000 times (charging and discharging at 1C,remain capacity more than 80%)
 2)Safety: No fire and explosion in overcharge test at voltage up to 30V in short-circuit test, Acupuncture test and heat shock up to 130℃
 3)High discharging rate to 30C
 4)Excellent high temperature performance: operate in 85℃ could working well, have more wide operate temperature range than other battery.



lifepo4 battery for storage system with related items:

Model Nominal Voltage(V) Nominal Capacity(Ah) Internal Resistance(mΩ) Life Cycles Maximum Charge Voltage Cut-off Discharge Voltage Continous Discharge Voltage Battery weight(Approx) Measurement(T*W*L)
VTC-4F10 12V 10 ≦60 ≥3000 14.6V 9.2V 20A 1.5Kg 151*98*95mm
33*70*290mm
VTC-4F20 12V 20 ≦30 ≥3000 14.6V 9.2V 40A 2.8Kg 181*76*166mm
VTC-4F30 12V 30 ≦30 ≥3000 14.6V 9.2V 60A 3.8Kg 182*130*195mm
VTC-4F30 12V 40 ≦10 ≥3000 14.6V 9.2V 80A 5.7Kg 182*130*195mm
VTC-4F50 12V 50 ≦8 ≥3000 14.6V 9.2V 75A 6.0Kg 182*130*195mm
VTC-4F100A 12V 100 ≦5 ≥3000 14.6V 9.2V 80A 13.5Kg 260*158*246mm
VTC-4F100B 12V 100 ≦5 ≥3000 14.6V 9.2V 100A 13.5Kg 305*173*225mm
VTC-4F150 12V 150 ≦4 ≥3000 14.6V 9.2V 100A 20.6Kg 295*178*345mm
VTC-4F200 12V 200 ≦4 ≥3000 14.6V 9.2V 100A 28.1Kg 520*269*203mm
VTC-8F40 24V 40 ≦20 ≥3000 29.2V 18.4V 40A 10Kg 170*195*200mm
255*75*290mm
VTC-8F60 24V 60 ≦15 ≥3000 29.2V 18.4V 60A 16Kg 255*160*250mm
VTC-8F100 24V 100 ≦12 ≥3000 29.2V 18.4V 100A 34Kg 520*269*203mm
VTC-16F20 48V 20 ≦120 ≥3000 58.4V 36.8V 40A 10Kg 180*195*200mm
260*80*290mm
VTC-16F30 48V 40 ≦60 ≥3000 58.4V 36.8V 80A 21Kg 350*200*205mm
260*150*295mm
VTC-16F50 48V 50 ≦60 ≥3000 58.4V 36.8V 80A 21Kg 133*410*452mm
VTC-16F100 48V 100 ≦60 ≥3000 58.4V 36.8V 100A 64Kg 177*410*452mm


Certification:


Packing & Shipping:

Company Profile:
VTC Power Co.,Ltd an OEM rechargeable battery manufacturer in China over 20 years. Specializing in NiMh,Nicd,Lithium polymer battery, LiFePO4 battery,LiSoci2 battery and Li-ion Battery. Our batteries got UL, IEC62133, UN38.3,CB, CE, ROHS certifications, some models also passed by KC, BIS.


Exhibition:


FAQ:
Q1. Can I have a sample order for Battery?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A:Sample needs 5-10 days, mass production time needs 25-30 days.
Q3. Do you have any MOQ limit for Battery?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by UPS, TNT... It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Battery?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

Q6. Is it OK to print my logo on Battery?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new batteries with new order for small quantity. For defective
batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
