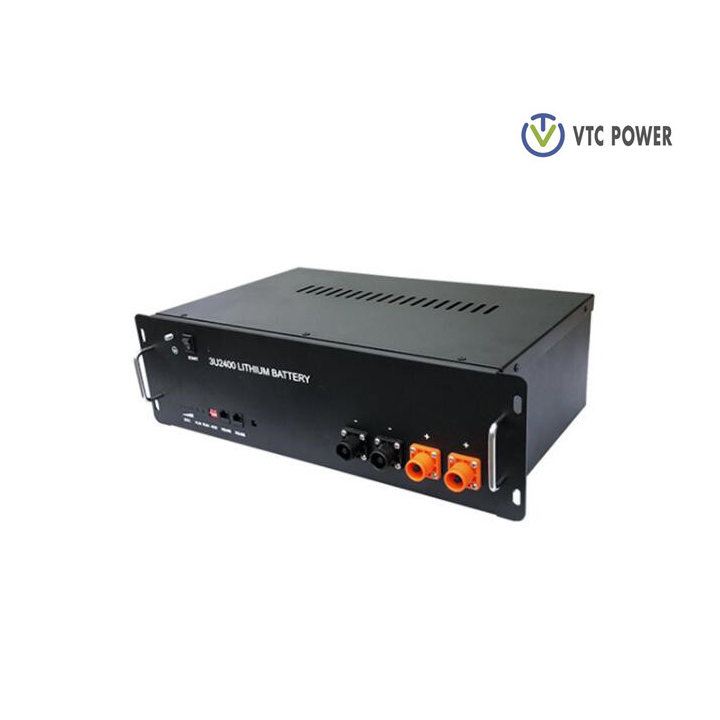

48v50ah Lithium Battery
  • 48v50ah Lithium Battery48v50ah Lithium Battery

48v50ah Lithium Battery

48v50ah Lithium Battery Specification:
Model: VTC-16LF50
Nominal voltage: 48V
Nominal capacity: 50Ah
Internal Resistance: ≤60mΩ
Life Cycles: ≥3000
Maximum Charge Voltage:58.4V

Send Inquiry

Product Description

48v50ah Lithium Battery Specification:

Model: VTC-16LF50
Nominal voltage: 48V
Nominal capacity: 50Ah
Internal Resistance: ≤60mΩ
Life Cycles: ≥3000
Maximum Charge Voltage: 58.4V
Cut-off Discharge Voltage: 36.9V
Continuous Discharge Current: 80A
Battery Weight: 21Kg


48v50ah Lithium Battery Key Features:

1)Long cycle life: More than 2000 times (charging and discharging at 1C,remain capacity more than 80%)

2)Safety: No fire and explosion in overcharge test at voltage up to 30V in short-circuit test, Acupuncture test and heat shock up to 130℃

3)High discharging rate to 30C

4)Excellent high temperature performance: operate in 85℃ could working well, have more wide operate temperature range than other battery.


48v50ah Lithium Battery Description:

The lithium iron phosphate battery is a type of rechargeable battery based on the original lithium ion chemistry, created by the use of Iron (Fe) as a cathode material. LiFePO4 cells have a higher discharge current, do not explode under extreme conditions and weigh less but have lower voltage and energy density than normal Li-ion cells.


48v50ah Lithium Battery Application:

LiFePO4 widely used in electric sprayer, solar power general, energy storage devices, telecom base station, solar street light, UPS, ESS and so on.


48v50ah Lithium Batterywith related items:

Model Nominal Voltage(V) Nominal Capacity(Ah) Internal Resistance(mΩ) Life Cycles Maximum Charge Voltage Cut-off Discharge Voltage Continous Discharge Voltage Battery weight(Approx) Measurement(T*W*L)
VTC-16F20 48V 20 ≦120 ≥3000 58.4V 36.8V 40A 10Kg 180*195*200mm
260*80*290mm
VTC-16F30 48V 40 ≦60 ≥3000 58.4V 36.8V 80A 21Kg 350*200*205mm
260*150*295mm
VTC-16F50 48V 50 ≦60 ≥3000 58.4V 36.8V 80A 21Kg 133*410*452mm
VTC-16F100 48V 100 ≦60 ≥3000 58.4V 36.8V 100A 64Kg 177*410*452mm


Certification


Packing & Shipping


FAQ

Q1. Can I have a sample order for Battery?

A: Yes, we welcome sample order to test and check quality.


Q2. What about the lead time?

A:Sample needs 5-10 days, mass production time needs 25-30 days.


Q3. Do you have any MOQ limit for Battery?

A: Low MOQ, 1pc for sample checking is available


Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by UPS, TNT... It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5. How to proceed an order for Battery?

A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.


Q6. Is it OK to print my logo on Battery?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q7: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty to our products.


Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new batteries with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
