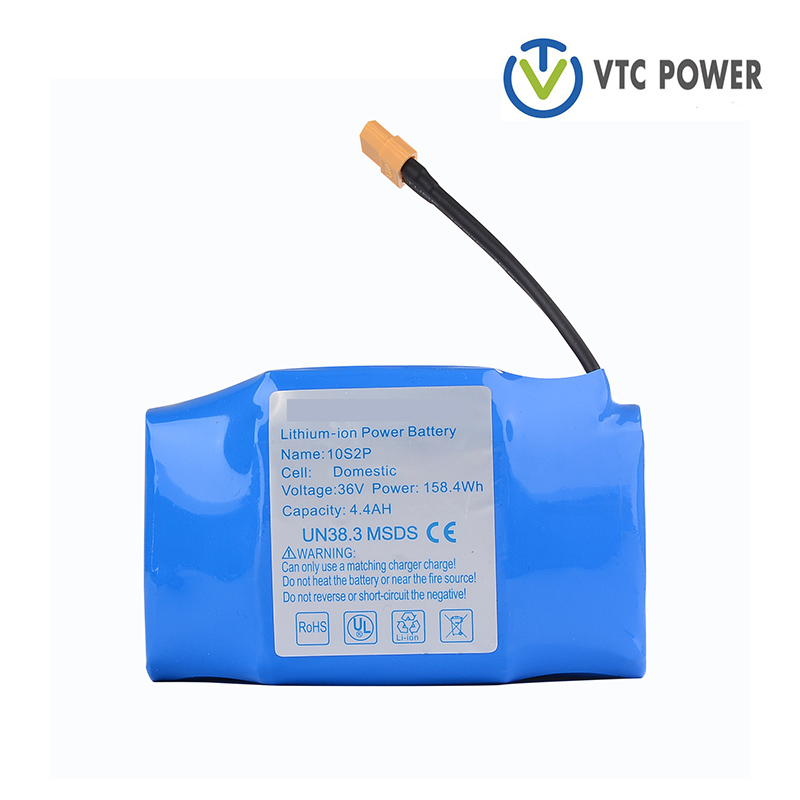

Model: VTC-L18650
Nominal voltage:36V
Full voltage: 42V
Nominal capacity: 4000mAh
Cell Combination: 10S2P
Cell Quantity (Parallel Series): 20pcs
Standard charge current: 2A 1C
Max charge current: 3A 1.5C
| Model: | VTC-L18650 |
| Nominal voltage: | 36V |
| Full voltage: | 42V |
| Nominal capacity: | 4000mAh |
| Cell Combination: | 10S2P |
| Cell Quantity (Parallel Series): | 20pcs |
| Standard charge current: | 2A 1C |
| Max charge current: | 3A 1.5C |
| Standard discharge current: | 6.6A 3C |
| Max discharge current: | 80A |
| Discharge cut-off voltage: | 25V |
| Life Cycles: | ≥1200 |
| Battery Weight: | 1200G |
| Measurement: | 58*85*135mm |
* Low self-discharge
* Double safety protection
* Sturdy and pressure resistanct steel envelope
* Excellent high and low temperature performance
* With outstanding high level of vibrations and shocks
Rechargeable Lithium Ion (Li-Ion) cells have a negative electrode (anode) made from lithium compounds. Lithium is a highly reactive material and is much lighter than the hydrogen-absorbing metal alloy of the NiMH negative electrode. This leads to higher gravimetric energy densities for the Li-Ion cell. Cells can stay in storage for 12 months without requiring maintenance. The expected cycle life of a Li-Ion in an application is about 1000+ cycles.
1.Electrical and hobby
2.Emergency power supply, LED light and flash light, emergency lights, pos machine
3.Consumer applications
4.Electrical tools
5.Solar lawn, remote control
6.Electric vacuum cleaner, electric sweeper
7.Medical device, POS device
8.Backup power supply
9.High drain small home appliance
* Li-Ion Battery Pack for Electric Balance Scooter
Q1. Can I have a sample order for Battery?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 5-10 days, mass production time needs 25-30 days.
Q3. Do you have any MOQ limit for Battery?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by UPS, TNT... It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Battery?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on Battery?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new batteries with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
