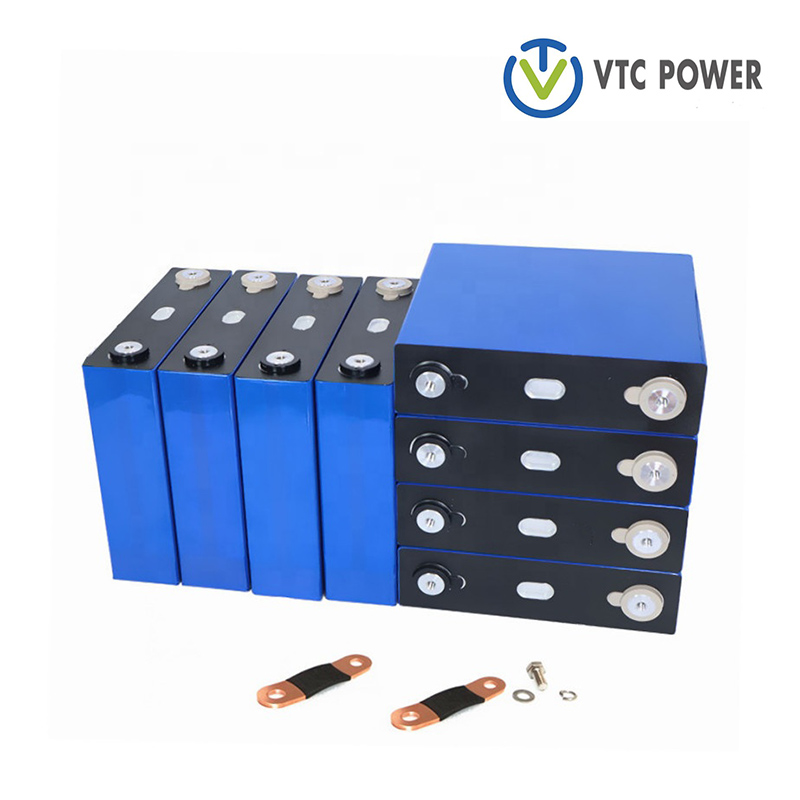

Model: VTC-LF270 Nominal capacity: 270Ah Ah Internal Resistance: ≤0.33mΩ Life Cycles: ≥3000 Maximum Charge Voltage: 3.65V Cut-off Discharge Voltage: 2.3V Battery Weight: 5.5Kg Measurement: 173.9*71.5*207.3mm
Model: VTC-LF271 Nominal capacity: 271Ah Internal Resistance: ≤0.33mΩ Life Cycles: ≥3000 Maximum Charge Voltage: 3.65V Cut-off Discharge Voltage: 2.3V Battery Weight: 5.5Kg Measurement: 173.9*71.5*207.3mm

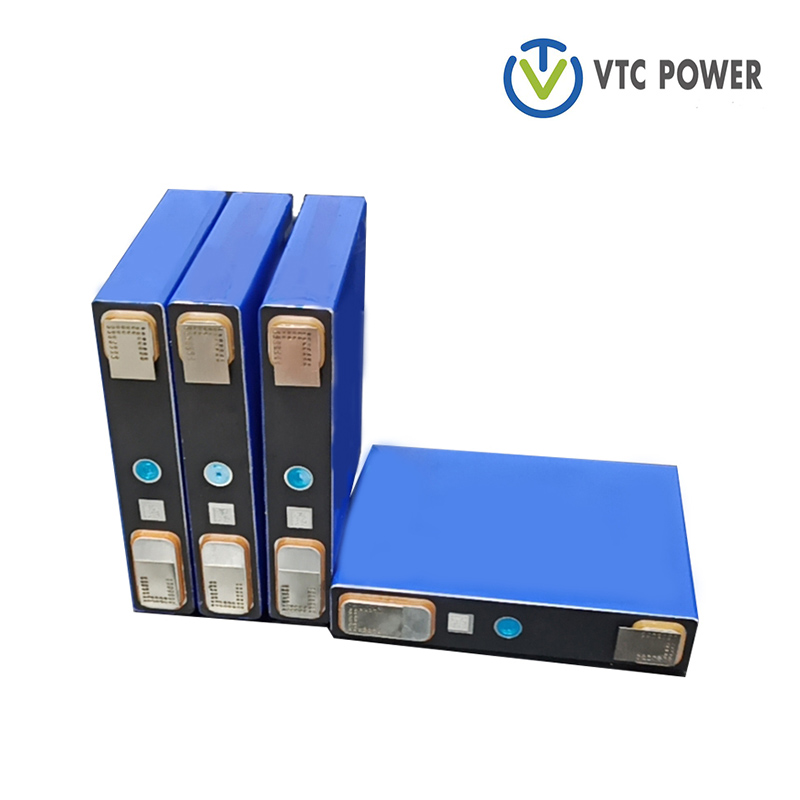

Model: VTC-LF100A Nominal capacity: 100Ah Internal Resistance: ≤1mΩ Life Cycles: ≥3000 Maximum Charge Voltage: 3.65V Cut-off Discharge Voltage: 2.3V Battery Weight: 2.3Kgprismatic lifepo4 battery cells Specification: Model: VTC-LF100A Nominal capacity: 100Ah Internal Resistance: ≤1mΩ Life Cycles: ≥3000 Maximum Charge Voltage: 3.65V Cut-off Discharge Voltage: 2.3V Battery Weight: 2.3Kg Measurement: 48*173*132mm prismatic lifepo4 battery cells Application: 1. Light electric vehicles: such as electric bicycle, golf car, small-scale electric flat car, forklift, cleanness car, electric wheelchairs,Truck 2. Large-scale electric vehicles: such as bus, electric car, tourist car and commix car 3. Electric tool: electric drill, electric saw, lawn mower 4. Remote control cars, boat, aircraft, toys, 5. Solar and wind power generation energy storage devices 6. UPS emergency lights, warning lights and miners lamp 8. Small medical equipment and portable equipment prismatic lifepo4 battery cells Description: The lithium iron phosphate battery is a type of rechargeable battery based on the original lithium ion chemistry, created by the use of Iron (Fe) as a cathode material. LiFePO4 cells have a higher discharge current, do not explode under extreme conditions and weigh less but have lower voltage and energy density than normal Li-ion cells. prismatic lifepo4 battery cells Key Features： 1）Long cycle life: More than 2000 times (charging and discharging at 1C,remain capacity more than 80%) 2）Safety: No fire and explosion in overcharge test at voltage up to 30V in short-circuit test, Acupuncture test and heat shock up to 130℃ 3）High discharging rate to 30C 4）Excellent high temperature performance: operate in 85℃ could working well, have more wide operate temperature range than other battery. prismatic lifepo4 battery cells with related items: Measurement: 48*173*132mm

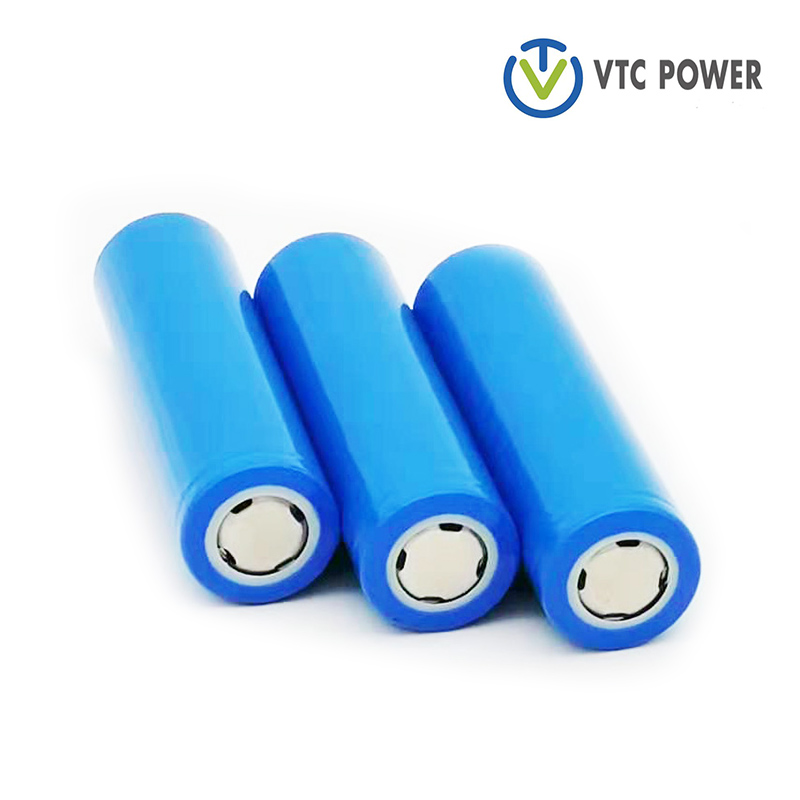

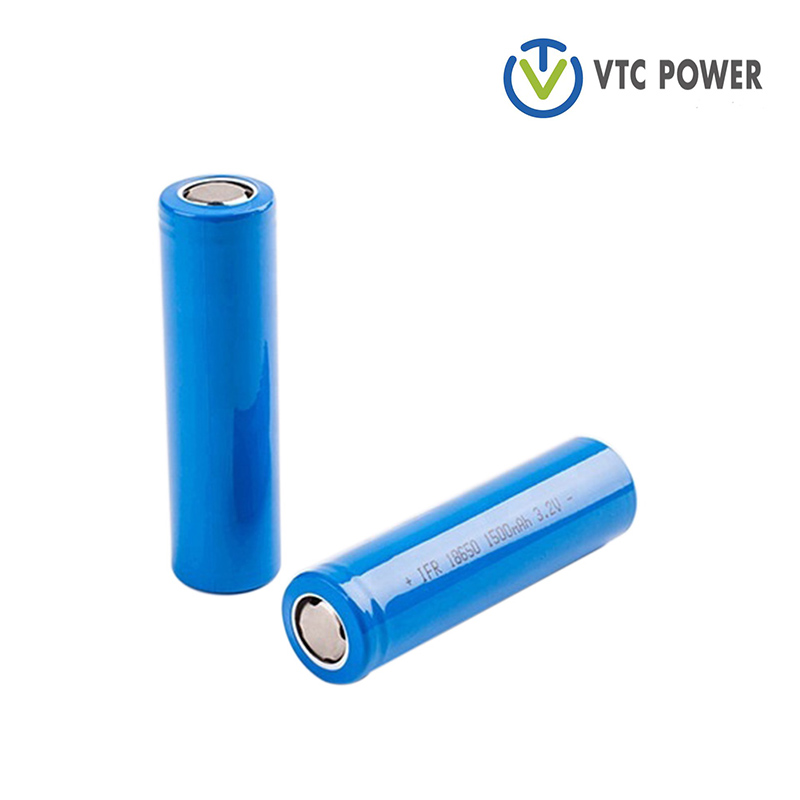

Model: VTC-IFR18650 Nominal capacity: 3000mAh Nominal Voltage: 3.7V Life Cycles: ≥2000 Maximum Charge Voltage:3.65V Cut-off Discharge Voltage: 2.3V Battery Weight: 80g Measurement: Φ18*65mm

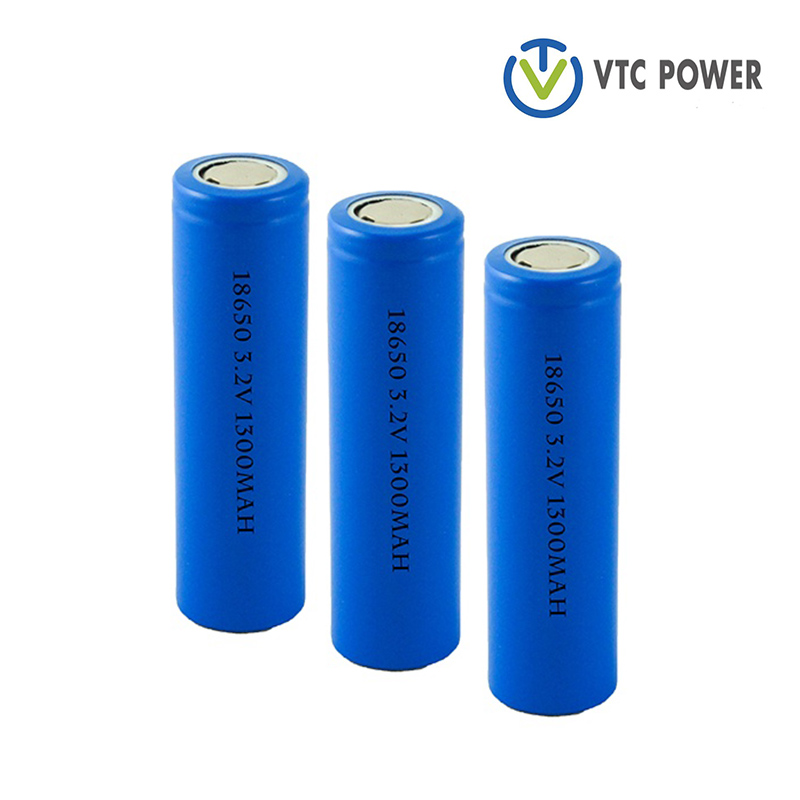

Model: VTC-IFR18650 Nominal capacity: 2600mAh Nominal Voltage: 3.7V Life Cycles: ≥2000 Maximum Charge Voltage:3.65V Cut-off Discharge Voltage: 2.3V Battery Weight: 80g Measurement: Φ18*65mm
Model: VTC-IFR18650
Nominal capacity: 2600mAh
Nominal Voltage: 3.7V
Life Cycles: ≥2000
Maximum Charge Voltage:3.65V
Cut-off Discharge Voltage: 2.3V
Battery Weight: 53g
Measurement: Φ18*65mm
