3.2V LifePO4 Battery Cell

The lithium iron phosphate (LiFePO4 battery cell) battery is a type of rechargeable battery, specifically a lithium-ion battery, which uses LiFePO4 as a cathode material, and a graphitic carbon electrode with a metallic current collector grid as the anode. LiFePO4 battery cell offer longer lifetimes 2000 cycles, better power density (220 Wh/L, the rate that energy can be drawn from them) and are inherently safer. LiFePO4 battery cell is finding a number of roles in vehicle use and backup power.
The nominal voltage of a LiFePO4 battery cell is 3.2V when comparing to sealed lead acid, which consists of 2V cells. A 12.8V battery therefore has 4 cells connected in series and a 25.6V battery has 8 cells connected in series.In most standard 12, 24 or 48 volt systems the best choice of lithium battery is LiFePO4 battery Cell(lithium Iron Phosphate battery).
LiFePo4 battery Cell is one of the hottest product among all series, it has many great features:
-High energy density, 270~340 wh/L, it means long work time.
View as

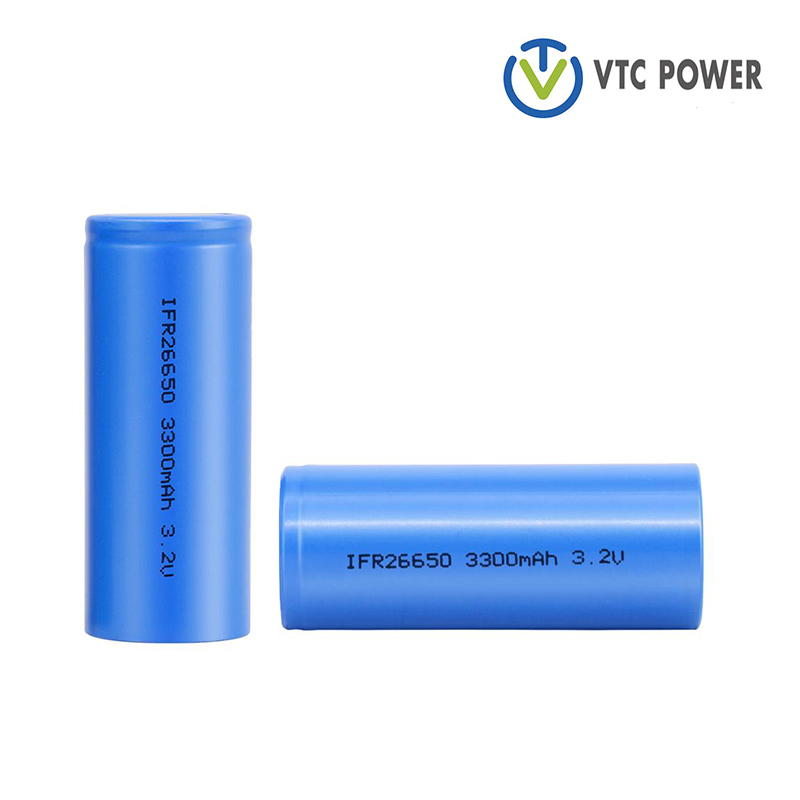

  • Model: VTC-LF26650
    Nominal capacity: 3300mAh
    Internal Resistance: ≤20mΩ
    Life Cycles: ≥3000
    Maximum Charge Voltage:3.65V
    Cut-off Discharge Voltage: 2.3V
    Battery Weight: 80g
    Measurement: 26*Φ65mm

  • Model: VTC-LF32700
    Nominal capacity: 6000mAh
    Internal Resistance: ≤10mΩ
    Life Cycles: ≥3000
    Maximum Charge Voltage:3.65V
    Cut-off Discharge Voltage: 2.0V
    Battery Weight: 140g
    Measurement: Φ32*70mm

  • Model: VTC-IFR14500M
    Type: LiFePO4
    Nominal capacity: 1300mAh
    Life Cycles: ≥1200
    Maximum Charge Voltage:4.2V
    Cut-off Discharge Voltage: 3.0V
    Battery Weight: 30g
    Measurement: Φ14*50mm

  • Model: VTC-IFR18650
    Nominal capacity: 1500mAh
    Life Cycles: ≥2000
    Maximum Charge Voltage:3.65V
    Cut-off Discharge Voltage: 2.3V
    Battery Weight: 45g
    Measurement: Φ18*65mm

  • Model: VTC-IFR18650
    Nominal capacity: 1500mAh
    Life Cycles: ≥2000
    Maximum Charge Voltage:3.65V
    Cut-off Discharge Voltage: 2.3V
    Battery Weight: 45g
    Measurement: Φ18*65mm

  • Model: VTC-16LF100
    Nominalvoltage: 48V
    Nominal capacity: 100Ah
    Internal Resistance: ≤80mΩ
    Life Cycles: ≥2000
    Maximum Charge Voltage:58.4V
    Cut-off Discharge Voltage: 36.9V
    Continuous Discharge Current:100A
    Battery Weight: 64Kg
    Measurement: 177*410*452mm

3.2V LifePO4 Battery Cell manufacturers and suppliers in China - VTC Power brands. Welcome to wholesale and buy 3.2V LifePO4 Battery Cell with cheap price from our factory. We also provide you newest price list, quotation and free sample. Our 3.2V LifePO4 Battery Cell can be customized, If you need, we also supply you with free sample.For more info, welcome to contact us.
