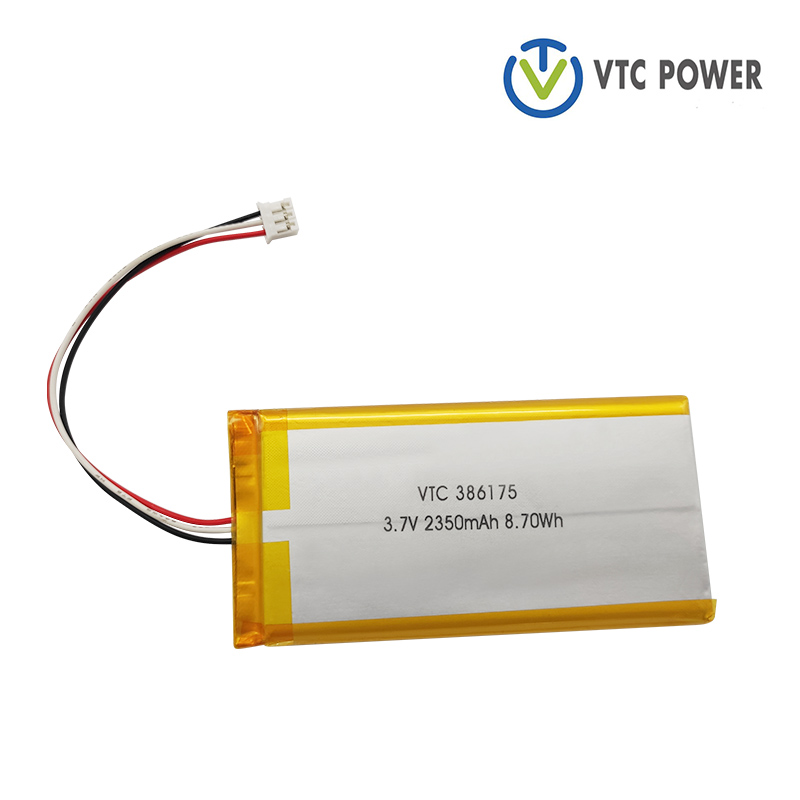

Model: VTC-LP386175 Nominal voltage: 3.7V Nominal capacity: 2350MAh Battery Weight:45G Measurement: 3.8*61*75mm
Model: | VTC-LP386175 |
Nominal voltage: | 3.7V |
Nominal capacity: | 2350MAh |
Battery Weight: | 45G |
Measurement: | 3.8*61*75mm |
1.High operation voltage
2.High energy density
3.Long cycle life
4.Minimal self-discharge
5.Wide temperature range
6.Environmentally compatible
7.High level of safety
8.Non-memory
Lithium Polymer Ion batteries provide the performance of the Li-ion in a thin or moldable package. They do not use a volatile liquid electrolyte and can sustain significant abuse without explosion or fire.
The lithium polymer uses a polymer gel electrolyte to replace the traditional liquid electrolyte. Lithium-polymer finds its market niche in wafer-thin geometries, such as batteries for credit cards and other such applications. Expected cycle life is about 1000+ cycles.
Mobile phones, tablets, Bluetooth headsets, smart watches and other smart wearable devices, GPS, electric toys, beauty instruments, aromatherapy machines, POS machine, LED lights, quadcopters, drones, VR, smart camera etc.
Li-Polymer Battery Type |
|||||
Model |
Capacity |
Nominal Voltage(V) |
Dimension(mm) |
||
(mAh) |
Thickness(±0.2) |
Width(±0.5) |
Length(±0.5) |
||
VTC-PL602030 |
300mAh |
3.7V |
6 |
20 |
30 |
VTC-PL602040 |
400mAh |
3.7V |
6 |
20 |
40 |
VTC-PL901763 |
950mAh |
3.7V |
9 |
17 |
63 |
VTC-PL902540 |
850mAh |
3.7V |
9 |
25 |
40 |
VTC-PL903040 |
950mAh |
3.7V |
9 |
30 |
40 |
VTC-PL102540 |
1100mAh |
3.7V |
10 |
25 |
40 |
VTC-PL502535 |
400mAh |
3.7V |
5 |
25 |
35 |
VTC-PL103040 |
1200mAh |
3.7V |
10 |
30 |
40 |
VTC-PL702038 |
500mAh |
3.7V |
7 |
20 |
38 |
VTC-PL501645 |
300mAh |
3.7V |
5 |
16 |
45 |
VTC-PL802530 |
550mAh |
3.7V |
8 |
25 |
30 |
VTC-PL523450 |
1000mAh |
3.7V |
5.2 |
34 |
50 |
VTC-PL902030 |
500mAh |
3.7V |
9 |
20 |
30 |
VTC-PL751445 |
400mAh |
3.7V |
7.5 |
14 |
45 |
VTC-PL501447 |
280mAh |
3.7V |
5 |
14 |
47 |
VTC-PL601335 |
210mAh |
3.7V |
6 |
13 |
35 |
VTC-PL702035 |
450mAh |
3.7V |
7 |
20 |
35 |
VTC-PL801437 |
350mAh |
3.7V |
8 |
14 |
37 |
VTC-PL902040 |
700mAh |
3.7V |
9 |
20 |
40 |
VTC-PL102040 |
800mAh |
3.7V |
10 |
20 |
40 |
VTC-PL702025 |
300mAh |
3.7V |
7 |
20 |
25 |
VTC-PL502035 |
320mAh |
3.7V |
5 |
20 |
35 |
VTC-PL573450 |
980mAh |
3.7V |
5.7 |
34 |
50 |
VTC-PL503040 |
550mAh |
3.7V |
5 |
30 |
40 |
VTC-PL721921 |
220mAh |
3.7V |
7.2 |
19 |
21 |
VTC-PL701225 |
130mAh |
3.7V |
7 |
12 |
25 |
VTC-PL502460 |
750mAh |
3.7V |
5 |
24 |
60 |
VTC-PL501637 |
245mAh |
3.7V |
5 |
16 |
37 |
VTC-PL801835 |
440mAh |
3.7V |
8 |
18 |
35 |
VTC-PL903050 |
850mAh |
3.7V |
9 |
30 |
50 |
VTC-PL631450 |
370mAh |
3.7V |
6.3 |
14 |
50 |
VTC-PL652631 |
500mAh |
3.7V |
6.5 |
26 |
31 |
VTC-PL602629 |
360mAh |
3.7V |
6 |
26 |
29 |
VTC-PL451244 |
180mAh |
3.7V |
4.5 |
12 |
44 |
VTC-PL922030 |
500mAh |
3.7V |
9.2 |
20 |
30 |
VTC-PL323450 |
500mAh |
3.7V |
3.2 |
34 |
50 |
VTC-PL433230 |
350mAh |
3.7V |
4.3 |
32 |
30 |
VTC-PL902060 |
1100mAh |
3.7V |
9 |
20 |
60 |
VTC-PL102050 |
1000mAh |
3.7V |
10 |
20 |
50 |
VTC-PL802535 |
750mAh |
3.7V |
8 |
25 |
35 |
VTC-PL451637 |
220mAh |
3.7V |
4.5 |
16 |
37 |
VTC-PL803040 |
1000mAh |
3.7V |
8 |
30 |
40 |
VTC-PL661442 |
330mAh |
3.7V |
6.6 |
14 |
42 |
VTC-PL952040 |
780mAh |
3.7V |
9.5 |
20 |
40 |
VTC-PL602035 |
400mAh |
3.7V |
6 |
20 |
35 |
VTC-PL103440 |
1500mAh |
3.7V |
10 |
34 |
40 |
VTC-PL263057 |
500mAh |
3.7V |
2.6 |
30 |
57 |
VTC-PL374043 |
850mAh |
3.7V |
3.7 |
40 |
43 |
VTC-PL424356 |
1000mAh |
3.7V |
4.2 |
43 |
56 |
VTC-PL523566 |
1100mAh |
3.7V |
5.2 |
35 |
66 |
VTC-PL743048 |
1200mAh |
3.7V |
7.4 |
30 |
48 |
VTC-PL504545 |
1200mAh |
3.7V |
5 |
45 |
45 |
VTC-PL374065 |
1220mAh |
3.7V |
3.7 |
40 |
65 |
VTC-PL504050 |
1250mAh |
3.7V |
5 |
40 |
50 |
VTC-PL653550 |
1300mAh |
3.7V |
6.5 |
35 |
50 |
VTC-PL102684 |
1500mAh |
3.7V |
10 |
26 |
84 |
VTC-PL443565 |
1500mAh |
3.7V |
4.4 |
35 |
65 |
VTC-PL933248 |
1600mAh |
3.7V |
9.3 |
32 |
48 |
VTC-PL103245 |
1600mAh |
3.7V |
10 |
32 |
45 |
VTC-PL823458 |
1700mAh |
3.7V |
8.2 |
34 |
58 |
VTC-PL533965 |
1700mAh |
3.7V |
5.3 |
39 |
65 |
VTC-PL603280 |
1800mAh |
3.7V |
6 |
32 |
80 |
VTC-PL327093 |
1800mAh |
3.7V |
3.2 |
70 |
93 |
VTC-PL724050 |
1800mAh |
3.7V |
7.2 |
40 |
50 |
VTC-PL504270 |
1900mAh |
3.7V |
5 |
42 |
70 |
VTC-PL103450 |
1900mAh |
3.7V |
10 |
34 |
50 |
VTC-PL663770 |
2000mAh |
3.7V |
6.6 |
37 |
70 |
VTC-PL723465 |
2000mAh |
3.7V |
7.2 |
34 |
65 |
VTC-PL903550 |
2000mAh |
3.7V |
9 |
35 |
50 |
VTC-PL614068 |
2000mAh |
3.7V |
6.1 |
40 |
68 |
VTC-PL425285 |
2100mAh |
3.7V |
4.2 |
52 |
85 |
VTC-PL104050 |
2200mAh |
3.7V |
10 |
40 |
50 |
VTC-PL346682 |
2200mAh |
3.7V |
3.4 |
66 |
82 |
VTC-PL624757 |
2200mAh |
3.7V |
6.2 |
47 |
57 |
VTC-PL355488 |
2250mAh |
3.7V |
3.5 |
54 |
88 |
VTC-PL715049 |
2250mAh |
3.7V |
7.1 |
50 |
49 |
VTC-PL504594 |
2300mAh |
3.7V |
5 |
45 |
94 |
VTC-PL515070 |
2300mAh |
3.7V |
5.1 |
50 |
70 |
VTC-PL386175 |
2350mAh |
3.7V |
3.8 |
61 |
75 |
VTC-PL507477 |
2400mAh |
3.7V |
5 |
74 |
77 |
VTC-PL347090 |
2400mAh |
3.7V |
3.4 |
70 |
90 |
VTC-PL865060 |
2500mAh |
3.7V |
8.6 |
50 |
60 |
VTC-PL555080 |
2500mAh |
3.7V |
5.5 |
50 |
80 |
VTC-PL755152 |
2500mAh |
3.7V |
7.5 |
51 |
52 |
VTC-PL335985 |
2500mAh |
3.7V |
3.3 |
59 |
85 |
VTC-PL377488 |
2600mAh |
3.7V |
3.7 |
74 |
88 |
VTC-PL604097 |
2600mAh |
3.7V |
6 |
40 |
97 |
VTC-PL953665 |
2600mAh |
3.7V |
9.5 |
36 |
65 |
VTC-PL804365 |
2700mAh |
3.7V |
8 |
43 |
65 |
VTC-PL904560 |
2700mAh |
3.7V |
9 |
45 |
60 |
VTC-PL764070 |
2800mAh |
3.7V |
7.6 |
40 |
70 |
VTC-PL367684 |
2800mAh |
3.7V |
3.6 |
76 |
84 |
VTC-PL804969 |
3000mAh |
3.7V |
8 |
49 |
69 |
VTC-PL964870 |
4000mAh |
3.7V |
9.6 |
48 |
70 |
VTC-PL756090 |
5000mAh |
3.7V |
7.5 |
60 |
90 |
