3.2V LifePO4 Battery Cell

The lithium iron phosphate (LiFePO4 battery cell) battery is a type of rechargeable battery, specifically a lithium-ion battery, which uses LiFePO4 as a cathode material, and a graphitic carbon electrode with a metallic current collector grid as the anode. LiFePO4 battery cell offer longer lifetimes 2000 cycles, better power density (220 Wh/L, the rate that energy can be drawn from them) and are inherently safer. LiFePO4 battery cell is finding a number of roles in vehicle use and backup power.
The nominal voltage of a LiFePO4 battery cell is 3.2V when comparing to sealed lead acid, which consists of 2V cells. A 12.8V battery therefore has 4 cells connected in series and a 25.6V battery has 8 cells connected in series.In most standard 12, 24 or 48 volt systems the best choice of lithium battery is LiFePO4 battery Cell(lithium Iron Phosphate battery).
LiFePo4 battery Cell is one of the hottest product among all series, it has many great features:
-High energy density, 270~340 wh/L, it means long work time.
View as

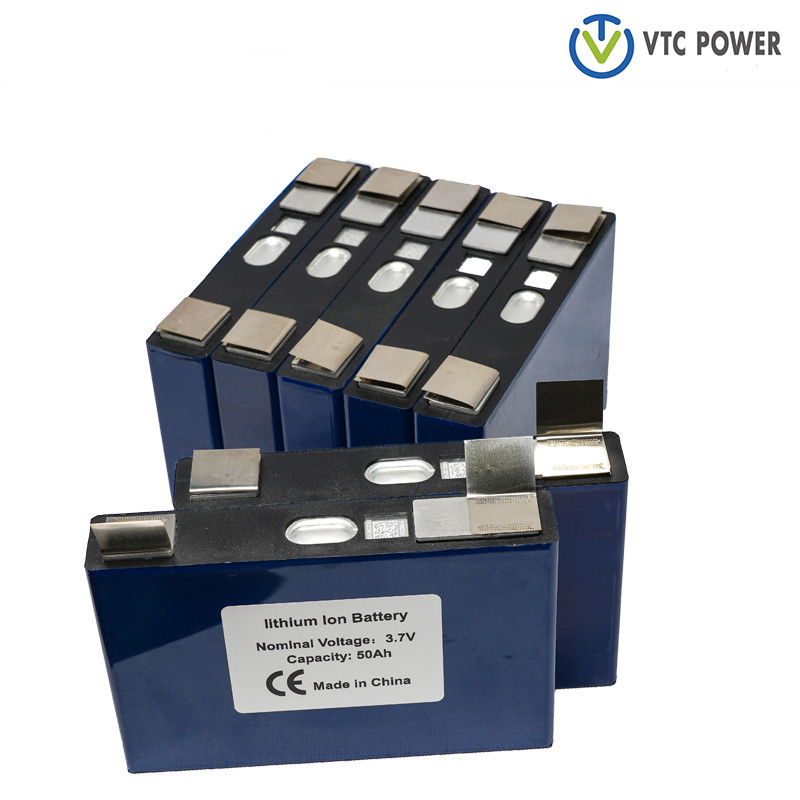

  • Model: VTC-LF50
    Battery Type: Lifepo4
    Nominal Capacity: 50Ah
    Nominal Voltage: 3.7V
    Battery Dimension: 27*148*94mm
    Battery Weight: 0.9Kg
    Internal Resistance: ≤0.7-1mΩ

  • Model: VTC-LF30
    Battery Type: Lifepo4
    Nominal Capacity: 30Ah
    Nominal Voltage: 3.2V
    Battery Dimension: 20*110*140mm
    Battery Weight: 0.65Kg
    Internal Resistance: ≤2mΩ

  • Storage Battery Lifepo4 3.2v 120ah Specification:
    Model: VTC-LF120
    Nominal capacity: 120Ah
    Internal Resistance: ≤0.8mΩ
    Life Cycles: ≥3000
    Maximum Charge Voltage: 3.65V
    Cut-off Discharge Voltage: 2.3V
    Battery Weight: 2.84Kg
    Measurement: 48*170*173mm

  • Lithium Iron Phosphate Battery Specification:
    Model: VTC-LF10
    Nominal capacity: 10Ah
    Internal Resistance: ≤2.5mΩ
    Life Cycles: ≥3000
    Maximum Charge Voltage: 3.65V
    Cut-off Discharge Voltage: 2.3V
    Battery Weight: 0.55Kg
    Measurement: 240*170*7mm

  • Lifepo4 Cell 3.2v 280ah Specification:
    Model: VTC-LF280
    Nominal capacity: 280Ah
    Internal Resistance: ≤1mΩ
    Life Cycles: ≥3000
    Maximum Charge Voltage: 3.65V
    Cut-off Discharge Voltage: 2.3V
    Battery Weight: 5.5Kg
    Measurement: 72*175*205mm

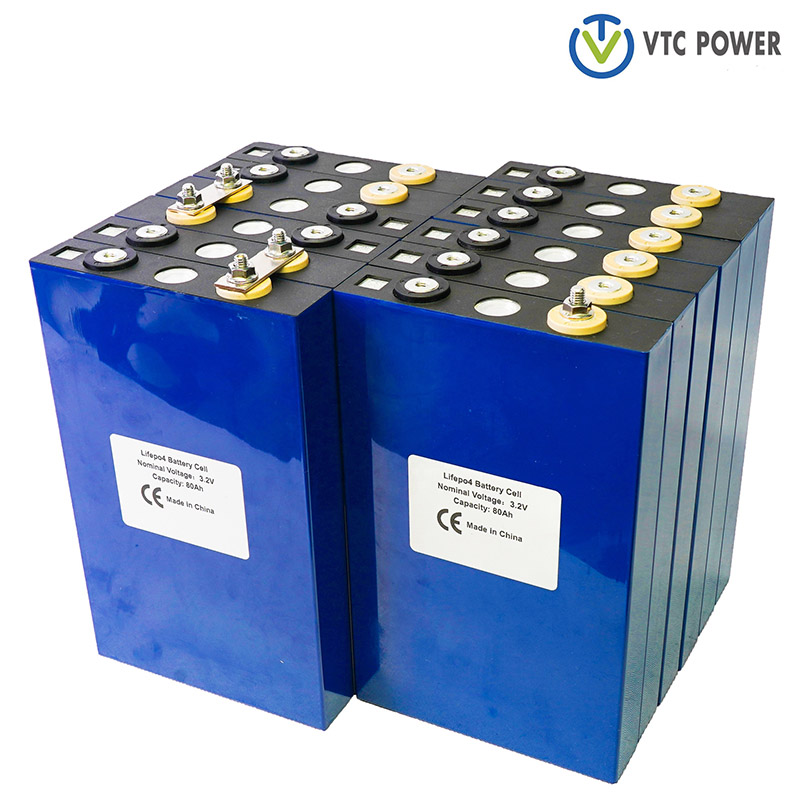

  • 3.2v Lifepo4 Battery Cell 80ah Specification:
    Model: VTC-LF80B
    Nominal capacity: 80Ah
    Internal Resistance: ≤1mΩ
    Life Cycles: ≥3000
    Maximum Charge Voltage: 3.65V
    Cut-off Discharge Voltage: 2.3V
    Battery Weight: 1.8Kg
    Measurement: 27*135*206mm

 ...678910
3.2V LifePO4 Battery Cell manufacturers and suppliers in China - VTC Power brands. Welcome to wholesale and buy 3.2V LifePO4 Battery Cell with cheap price from our factory. We also provide you newest price list, quotation and free sample. Our 3.2V LifePO4 Battery Cell can be customized, If you need, we also supply you with free sample.For more info, welcome to contact us.
