Rechargeable Lithium Battery
  • Rechargeable Lithium BatteryRechargeable Lithium Battery

Rechargeable Lithium Battery

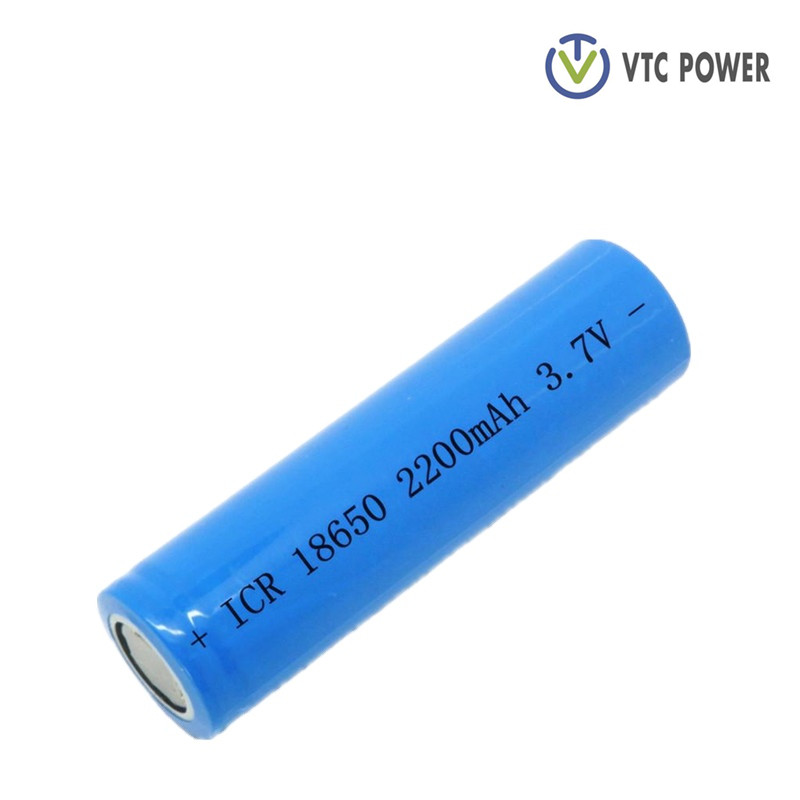

Rechargeable Lithium Battery Specification:
Model: VTC-L18650
Nominal voltage: 3.7V
Nominal capacity: 2200MAh
Life Cycles: ≥2000
Battery Weight: 48G
Measurement(Φ*H): 18*65mm

Send Inquiry

Product Description

Rechargeable Lithium Battery Specification:

Model: VTC-L18650
Nominal voltage: 3.7V
Nominal capacity: 2200MAh
Life Cycles: ≥2000
Battery Weight: 48G
Measurement(Φ*H): 18*65mm


Rechargeable Lithium Battery Key Features:

1.Intelligent Battery Pack Design

2.Environment Friendly Chemistry, Pollution-free; non-polluting

3.High Energy Density, High Power Density

4.No fire, no explosion, No leakage

5.Wholly closed dust-free workshops, securing high quality

6.Excellent Cycle Life, chargeable up to 500 or 1000 times


Rechargeable Lithium Battery Description:

Rechargeable Lithium Ion (Li-Ion) cells have a negative electrode (anode) made from lithium compounds. Lithium is a highly reactive material and is much lighter than the hydrogen-absorbing metal alloy of the NiMH negative electrode. This leads to higher gravimetric energy densities for the Li-Ion cell. Cells can stay in storage for 12 months without requiring maintenance. The expected cycle life of a Li-Ion in an application is about 1000+ cycles.


Rechargeable Lithium Battery Application:

E-Bike, Torch, E-cigarette, Drones, UPS, E-Skateboard, Power Tool, Sweeping Robots, Electric Vehicles, Medical Device, Gardening Tool


Rechargeable Lithium Battery with long cycle life:

Model Battery Material Nominal Voltage(V) Nominal Capacity Internal Resistance Life Cycles Cut-off Discharge Voltage Maximum Charge Voltage Battery weight(Approx) Measurement
(Φ*H)
VTC-LF14500C LiFePo4 3.2V 400mAh ≦50 ≥3000 2.3V 3.65V 18.5g 14*50mm
VTC-LF18500C LiFePo4 3.2V 1100mAh ≦40 ≥3000 2.3V 3.65V 32g 18*50mm
VTC-LF18650C LiFePo4 3.2V 1500mAh ≦40 ≥3000 2.3V 3.65V 45g 18*65mm
VTC-LF22650C LiFePo4 3.2V 2300mAh ≦20 ≥3000 2.3V 3.65V 60g 22*65mm
VTC-LF22650C LiFePo4 3.2V 3300m Ah ≦40 ≥3000 2.3 V 3.65V 80g 26*65mm
VTC-LF2265C LiFePo4 3.2V 3600m Ah ≦40 ≥3000 2.3 V 3.65V 83g 26*65mm
VTC-LF32650C LiFePo4 3.2V 6000m Ah ≦10 ≥3000 2.3 V 3.65V 195g 32*65mm
VTC-LF32700C LiFePo4 3.2V 6500m Ah ≦10 ≥3000 2.3 V 3.65V 198g 32*70mm
VTC-LF25 LiFePo4 3.2V 25 Ah ≦3 ≥3000 2.3 V 3.65V 690g 22*100*140 mm
VTC-LF80A LiFePo4 3.2V 80 Ah ≦1 ≥3000 2.3 V 3.65V 2.3kg 48*173*132 mm
VTC-LF80B LiFePo4 3.2V 80 Ah ≦1 ≥3000 2.3 V 3.65V 1.8kg 27*135*206 mm
VTC-LF100A LiFePo4 3.2V 100Ah ≦1 ≥3000 2.3V 3.65V 2.3kg 48*173*132mm
VTC-LF100B LiFePo4 3.2V 100Ah ≦1 ≥3000 2.3V 3.65V 2.08kg 34*135*216mm
VTC-LF120 LiFePo4 3.2V 120Ah ≦1 ≥3000 2.3V 3.65V> 2.84kg 48*170*173mm
VTC-LF202 LiFePo4 3.2V 202Ah ≦1 ≥3000 2.3V 3.65V 4.12kg 54*174*208mm
VTC-LF280 LiFePo4 3.2V 280Ah ≦1 ≥3000 2.3V 3.65V 5.5kg 72*175*205mm


Certification


Packing & Shipping


FAQ

Q1. Can I have a sample order for Battery?

A: Yes, we welcome sample order to test and check quality.


Q2. What about the lead time?

A:Sample needs 5-10 days, mass production time needs 25-30 days.


Q3. Do you have any MOQ limit for Battery?

A: Low MOQ, 1pc for sample checking is available


Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by UPS, TNT... It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5. How to proceed an order for Battery?

A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.


Q6. Is it OK to print my logo on Battery?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q7: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty to our products.


Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new batteries with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
