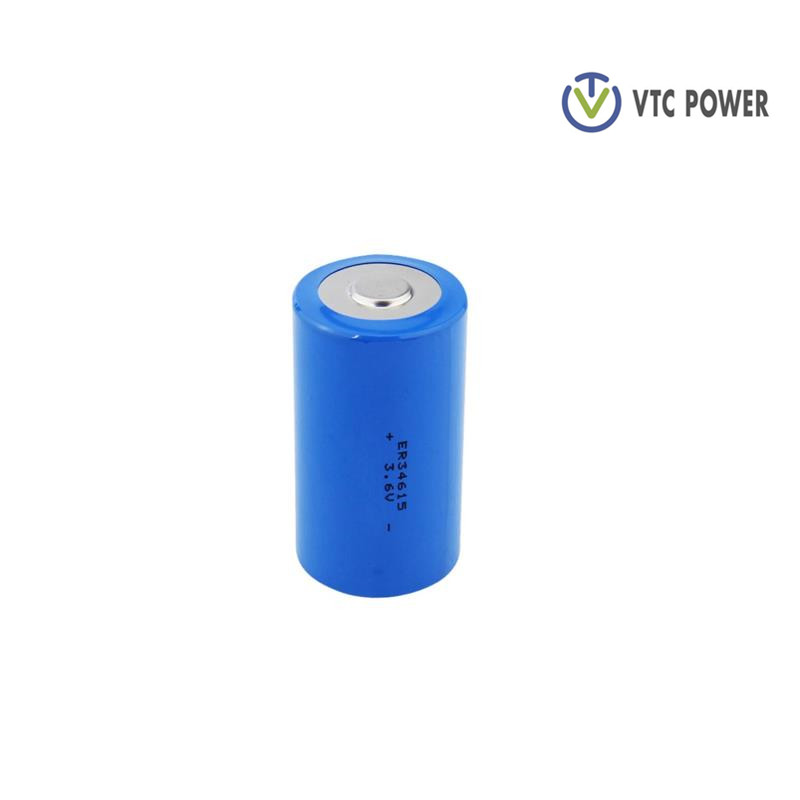

3.6v Er34615m Lithium Battery Specification:
Model: VTC-ER34615
Nominal voltage: 3.6V
Nominal capacity: 19000MAh
Battery Weight: 115G
Measurement（Φ*H）: 34*61.5mm
| Model: | VTC-ER34615 |
| Nominal voltage: | 3.6V |
| Nominal capacity: | 19000MAh |
| Battery Weight: | 115G |
| Measurement（Φ*H）: | 34*61.5mm |
• High operating voltage, stable during most of the application lifetime
• Applicable in a wide range of temperatures (-55°C to +85°C)
• Superior shelf life and reliability: Over 10 years of shelf life if stored at room temperature
• Energy type consists of a bobbin structure that is best suited for a low discharge current. It may require activation before the medium currents can be delivered
• Self-discharge rate of less than 1% per year
Li-SOCl2 battery can provide long lift in nominal temperature and be operated over a wide rang of temperature.
Solar-Wind Power System, City Grid, Community and Family, RV Motorhome, Golf Carts Battery, Boat Marine Yachts, Electric Skateboard, Vehecle
Telcom Base, CATV system, Computer Server Center, Medical Instrument, Military Equipment
Security and Electronics, Mobile POS, Mining Light, Torch, LED Light, Emergency Light, LED Backup, Engine Starling Battery, etc
| Model | Size | Nominal Voltage | Nominal Capacity | Standard Discharge Current | Max Discharge Current | Cut-off Voltage | Weight(g) | Measurement(Φ*Hmm) |
| VTC-ER14250H | 1/2AA | 3.6 | 1200 | 1 | 20 | 2 | 10 | Φ14.5*25.4 |
| VTC-ER14335 | 2/3AA | 3.6 | 1650 | 1 | 40 | 2 | 13 | Φ14.5*33.5 |
| VTC-ER14505H | AA | 3.6 | 2600 | 1 | 50 | 2 | 18 | Φ14.5*50.5 |
| VTC-ER17505H | A | 3.6 | 3600 | 2 | 70 | 2 | 24 | Φ17.0*50.5 |
| VTC-ER18505H | -- | 3.6 | 4000 | 2 | 70 | 2 | 30 | Φ18.5*50.5 |
| VTC-ER26500H | C | 3.6 | 8500 | 2 | 100 | 2 | 53 | Φ26.2*50.0 |
| VTC-ER261020H | CC | 3.6 | 16000 | 2 | 150 | 2 | 101 | Φ26.2*102.0 |
| VTC-ER34615H | D | 3.6 | 19000 | 5 | 150 | 2 | 103 | Φ33.6*60.0 |
| VTC-ER341245H | DD | 3.6 | 36000 | 10 | 300 | 2 | 200 | Φ34.2*124.5 |
| VTC-ER14335M | 2/3AA | 3.6 | 1350 | 1 | 150 | 2 | 13 | Φ14.5*33.5 |
| VTC-ER14505M | AA | 3.6 | 2100 | 1 | 400 | 2 | 19 | Φ14.5*50.5 |
| VTC-ER17335M | 2/3AA | 3.6 | 1700 | 3 | 200 | 2 | 19 | Φ17.0*33.5 |
| VTC-ER17505M | A | 3.6 | 2800 | 3 | 1000 | 2 | 26 | Φ17.0*50.5 |
| VTC-ER18505M | -- | 3.6 | 3500 | 5 | 1000 | 2 | 30 | Φ18.5*50.5 |
| VTC-ER26500M | C | 3.6 | 6000 | 10 | 1500 | 2 | 57 | Φ26.2*50.0 |
| VTC-ER34615M | D | 3.6 | 13000 | 15 | 1800 | 2 | 109 | Φ34.2*61.5 |
Q1. Can I have a sample order for Battery?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 5-10 days, mass production time needs 25-30 days.
Q3. Do you have any MOQ limit for Battery?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by UPS, TNT... It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Battery?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on Battery?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new batteries with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
